High Precision Aspheric Meniscus K9 Optical Glass Lens

High Precision Aspheric Meniscus K9 Optical Glass Lens
High Precision Aspheric Meniscus K9 Optical Glass Lens High Precision Aspheric Meniscus K9 Optical Glass Lens High Precision Aspheric Meniscus K9 Optical Glass Lens High Precision Aspheric Meniscus K9 Optical Glass Lens High Precision Aspheric Meniscus K9 Optical Glass Lens High Precision Aspheric Meniscus K9 Optical Glass Lens

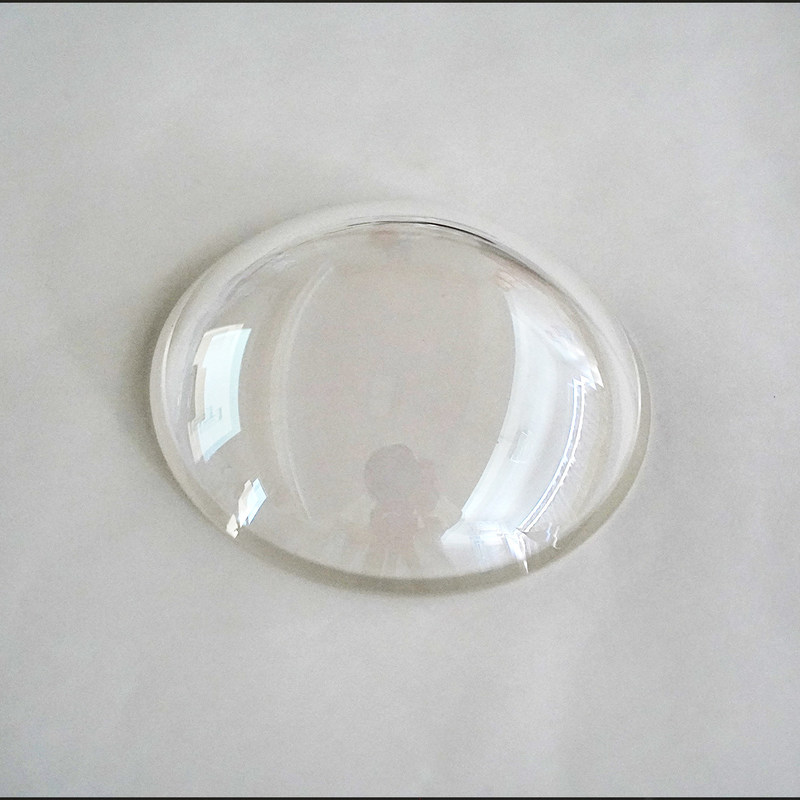

Gambar besar :  High Precision Aspheric Meniscus K9 Optical Glass Lens

Detail produk:
Tempat asal: Tiongkok
Nama merek: Advance
Sertifikasi: ROHS\Reach
Nomor model: Sebagai Persyaratan
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: $0.2~$100
Kemasan rincian: EVA+Vakum
Waktu pengiriman: 3 ~ 30 hari setelah pesanan
Syarat-syarat pembayaran: T/T&L/C
Menyediakan kemampuan: 1000rb/per bulan
Kontak

High Precision Aspheric Meniscus K9 Optical Glass Lens

Deskripsi
Jaminan: - Dukungan khusus: OEM, ODM
Penggunaan: Optik Struktur: lensa meniskus
Membentuk: Bulat Bahan: BK7 dan kaca optik lainnya, kuarsa, safir, Ge,Si,ZnSe,CaF2 dll
Panjang fokus: Kebiasaan Lapisan: Berdasarkan permintaan
Diameter: Kebiasaan Toleransi diameter: +/- 0,005mm
Keakuratan permukaan: N=1~0,5 Toleransi Ketebalan Pusat: +/- 0,001mm
Toleransi Panjang Fokus: +/- 1% Kualitas Permukaan: 5/10~60/40
Area Aplikasi: Pencitraan, Pencahayaan, Laser, dll Pelabuhan: Shanghai
Tipe Antarmuka: Canon EF-S Diameter: 25 mm
Ketebalan tengah: 5 mm Toleransi lebar: +/- 0,01mm
Gaya: antik Area Aplikasi: Pencahayaan, Laser, dll
Membentuk: Bentuk bola Bahan: kaca optik
Suhu pengoperasian: -20 sampai 70 °C Filter Warna Cincin: Hitam, Perak, Emas
Pilihan Pelapisan: hijau Indeks bias: 1.52
Panjang Fokus: 150mm
Menyoroti:

K9 Optical Glass Lens

,

Aspheric Optical Glass Lens

,

Meniscus aspheric lens

High Precision Wholesale Aspheric K9 Glass Positive Meniscus Optical Display Lens Suppliers

Specification

Materials BK7 or other optical glass,quartz,sapphire,Ge,Si,ZnSe,CaF2 etc
Diameter 1.5~300mm
Radius R0.8mm-∞
Focal length -30000mm~+30000mm
Center thickness tolerance +/-0.01mm
Diameter tolerance +/-0.005mm
Focal length tolerance +/-1%
Surface accuracy N=1~3
Irregularity ΔN=0.1~0.5
Decenter 3''~1''
Surface quality 10/5~60/40
Coating Upon request
Application area Imaging,Lighting,Laser etc

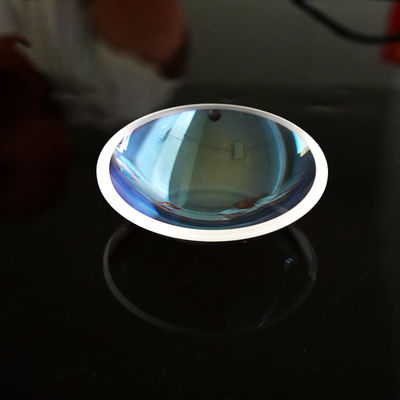

High Precision Aspheric Meniscus K9 Optical Glass Lens 0

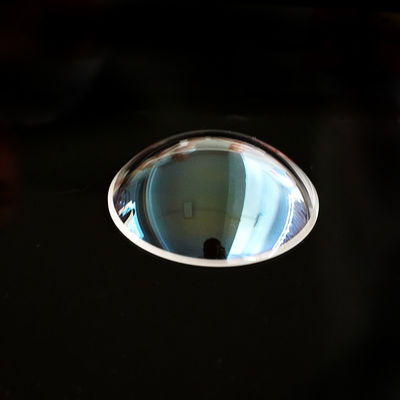

High Precision Aspheric Meniscus K9 Optical Glass Lens 1

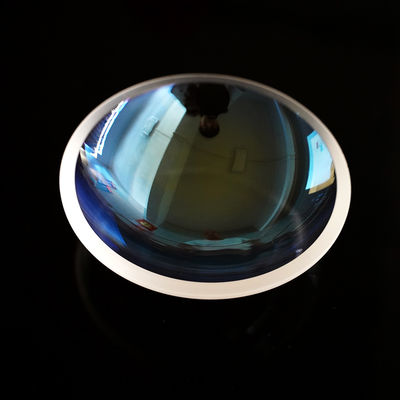

High Precision Aspheric Meniscus K9 Optical Glass Lens 2

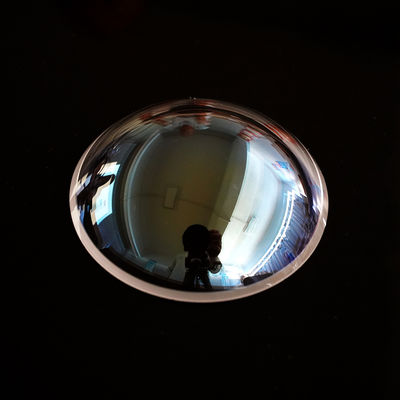

High Precision Aspheric Meniscus K9 Optical Glass Lens 3

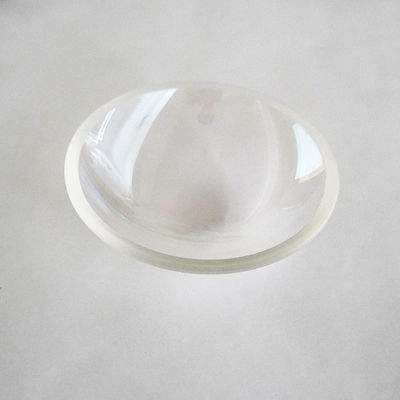

High Precision Aspheric Meniscus K9 Optical Glass Lens 4

Recommend Products
High Precision Aspheric Meniscus K9 Optical Glass Lens 5
Company Profile
High Precision Aspheric Meniscus K9 Optical Glass Lens 6


Shanghai Advance Optical-Electronics Technology Co., Ltd. is a technology-based production enterprise,officially established in September 2009,the plant site located in Qingpu Industrial Park, Shanghai, only half an hour's drive from Shanghai Hongqiao International Airport. The company gathers several excellent technicans in optical industry, has comprehensive supporting capabilities such as optical mechanical and electrical design, processing and sales services, and wholeheartedly provides each customer with high-quality and convenient products and services. Business scope: optical mechanical and electrical module development, precision optical element processing, camera lens design and processing, optical design and optical path optimization solution, technical consultation and after-sales service. Application fields: machine vision, artificial intelligence, biomedical, smart city, high-end monitoring, testing instruments, military equipment, laser etching, special lighting, scientific research institutions, etc.



Company Advantages:

1. Have comprehensive design, production and sales capabilities, and provide customers with one-stop convenient procurement services; 2. It has tens of thousands of optical molds and samples, which can provide customers with fast proofing services with low cost; 3. Be able to participate in the customer's new product research and development early, provide feasible plans and suggestions, and make the project less detours;
Certifications
High Precision Aspheric Meniscus K9 Optical Glass Lens 7
Exhibition
High Precision Aspheric Meniscus K9 Optical Glass Lens 8
Packing & Delivery
High Precision Aspheric Meniscus K9 Optical Glass Lens 9
High Precision Aspheric Meniscus K9 Optical Glass Lens 10

FAQ
Q: What are your main products or Which fiefd do your products be used?
A: We are specialized in optical design.optical element processing,Lenses assembly,Such as Spherical lens,Aspherical
lens,Cylindarlens,Reflector mirror,Filter,Rod lens,Camera lenses etc,and our products are wide used to these filed such as
imaging,Laser,Lighting etc.

Q: What's your advantage?
1. We have about ten thousands optical modules and fixturesin stock,and employ several outstanding technicians and manager.that
will enable to provide customer excellent quality in shortleadtime,also can save the plenty of develop cost for customer.
2. We can help customer to optimize the optical system whichthey dislike,and provide the free optical solution or suggestion.
Q: What's your MOQ?
A: 10pcs.
Q: What's your leadtime?
A: 1day for inventory and 25~35days for the new project.

Q: What's your shipping type?
A: Usually by Fedex,DHL,TNT,EMS etc or Customer appointed.

Q: What's the payment condition?
A: T/T,L/C,VISA,Paypal,Alipay or Negotiation.

Q: What's your quality guarantee period?
A: Three years.
