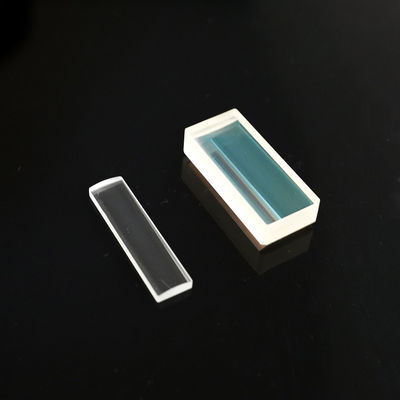

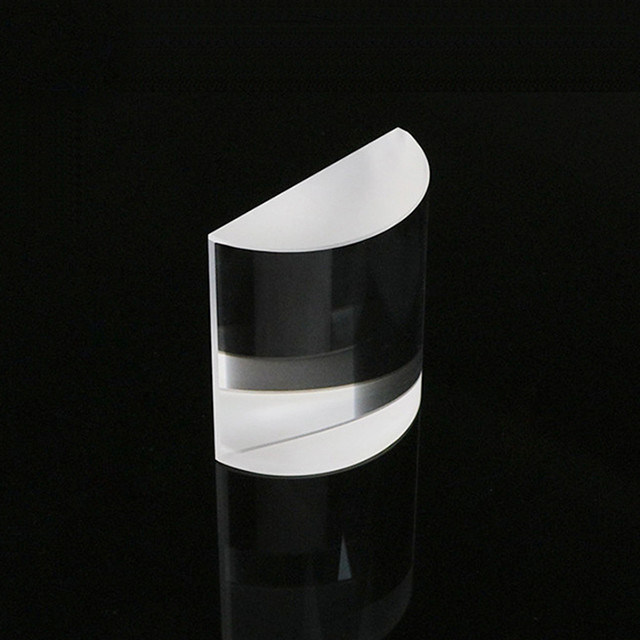

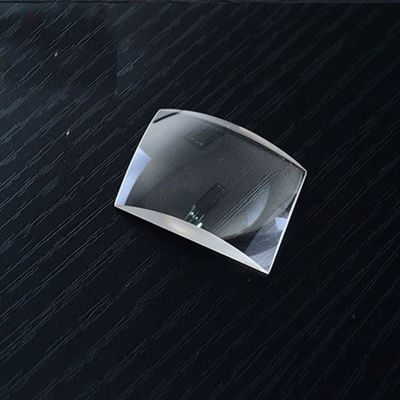

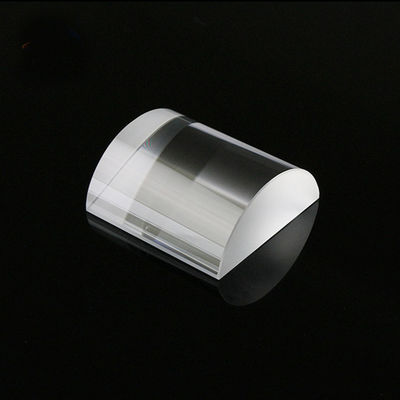

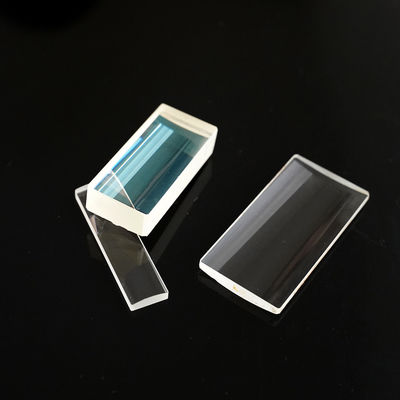

0.7mm To 400mm Cylindrical Mirrors , BK7 Plano Convex Cylindrical Lens

0.7mm To 400mm Cylindrical Mirrors , BK7 Plano Convex Cylindrical Lens
0.7mm To 400mm Cylindrical Mirrors , BK7 Plano Convex Cylindrical Lens 0.7mm To 400mm Cylindrical Mirrors , BK7 Plano Convex Cylindrical Lens 0.7mm To 400mm Cylindrical Mirrors , BK7 Plano Convex Cylindrical Lens 0.7mm To 400mm Cylindrical Mirrors , BK7 Plano Convex Cylindrical Lens 0.7mm To 400mm Cylindrical Mirrors , BK7 Plano Convex Cylindrical Lens 0.7mm To 400mm Cylindrical Mirrors , BK7 Plano Convex Cylindrical Lens

Gambar besar :  0.7mm To 400mm Cylindrical Mirrors , BK7 Plano Convex Cylindrical Lens

Detail produk:
Tempat asal: Shanghai, Cina
Nama merek: Advance
Nomor model: Maju
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10 buah
Harga: $100.00/Pieces 10-99 Pieces
Kemasan rincian: Vakum+EVA+Karton
Menyediakan kemampuan: 100000 Potongan/potongan per Minggu
Kontak

0.7mm To 400mm Cylindrical Mirrors , BK7 Plano Convex Cylindrical Lens

Deskripsi
Jaminan: - Dukungan khusus: OEM, ODM
Penggunaan: Optik Struktur: Plano-cembung
Membentuk: Berbentuk silinder Bahan: BK7, Kuarsa, Inframerah, Safir, Ge, Si, ZnSe, CaF2, dll.
Aplikasi: Elemen Optik Diameter: Persyaratan Adat
Lapisan: Dilapisi AR Kualitas Permukaan: 60/40 40/20
Warna: transparan Keterangan: Lensa Bi-Telesentris
Sertifikat: Rohs Panjang fokus: Permintaan khusus
Ukuran: Ukuran khusus Pelabuhan: Shanghai
Menyoroti:

400mm Cylindrical Mirrors

,

0.7mm Cylindrical Mirrors

,

BK7 Plano Convex Cylindrical Lens

Optical Glass Lens Convex Cylindrical Lens Led Glass Lens

Normally the substrates can be K9 glass or fused silica glass.And reflective coating on the concave surface.The plano surface is just fine grinding.

This is the BBR reflective coating on the concave surface.

Also we can make the metal coating such as Aluminium coating ,silver coating or gold coating on the concave surface.

Specification

Range of diameter Dia.0.7mm-Dia.400mm
Range of curve radius R1.5-R∞ etc
Tolerance of diameter +/-0.1,+/-0.01,+/-0.005 ect.
Surface of diameter λ,1/2λ,1/4λ.1/10λ etc
Tolerance of Thickness +/-0.1,+/-0.05,+/-0.01etc
Centration +/-2',+/-1' etc
Aperture N 5,1 etc
Irregularity ΔN 2,1,0.5,0.2 etc
Surface quality 60/40,40/20,20/10,10/5 etc


0.7mm To 400mm Cylindrical Mirrors , BK7 Plano Convex Cylindrical Lens 0

0.7mm To 400mm Cylindrical Mirrors , BK7 Plano Convex Cylindrical Lens 1

Recommend Products
0.7mm To 400mm Cylindrical Mirrors , BK7 Plano Convex Cylindrical Lens 2
Company Profile
0.7mm To 400mm Cylindrical Mirrors , BK7 Plano Convex Cylindrical Lens 3


Shanghai Advance Optical-Electronics Technology Co., Ltd. is a technology-based production enterprise,officially established in September 2009,the plant site located in Qingpu Industrial Park, Shanghai, only half an hour's drive from Shanghai Hongqiao International Airport. The company gathers several excellent technicans in optical industry, has comprehensive supporting capabilities such as optical mechanical and electrical design, processing and sales services, and wholeheartedly provides each customer with high-quality and convenient products and services. Business scope: optical mechanical and electrical module development, precision optical element processing, camera lens design and processing, optical design and optical path optimization solution, technical consultation and after-sales service. Application fields: machine vision, artificial intelligence, biomedical, smart city, high-end monitoring, testing instruments, military equipment, laser etching, special lighting, scientific research institutions, etc.



Company Advantages:

1. Have comprehensive design, production and sales capabilities, and provide customers with one-stop convenient procurement services; 2. It has tens of thousands of optical molds and samples, which can provide customers with fast proofing services with low cost; 3. Be able to participate in the customer's new product research and development early, provide feasible plans and suggestions, and make the project less detours;
Certifications
0.7mm To 400mm Cylindrical Mirrors , BK7 Plano Convex Cylindrical Lens 4
Exhibition
0.7mm To 400mm Cylindrical Mirrors , BK7 Plano Convex Cylindrical Lens 5
Packing & Delivery
0.7mm To 400mm Cylindrical Mirrors , BK7 Plano Convex Cylindrical Lens 6
0.7mm To 400mm Cylindrical Mirrors , BK7 Plano Convex Cylindrical Lens 7

FAQ
Q: What are your main products or Which fiefd do your products be used?
A: We are specialized in optical design.optical element processing,Lenses assembly,Such as Spherical lens,Aspherical
lens,Cylindarlens,Reflector mirror,Filter,Rod lens,Camera lenses etc,and our products are wide used to these filed such as
imaging,Laser,Lighting etc.

Q: What's your advantage?
1. We have about ten thousands optical modules and fixturesin stock,and employ several outstanding technicians and manager.that
will enable to provide customer excellent quality in shortleadtime,also can save the plenty of develop cost for customer.
2. We can help customer to optimize the optical system whichthey dislike,and provide the free optical solution or suggestion.
Q: What's your MOQ?
A: 10pcs.
Q: What's your leadtime?
A: 1day for inventory and 25~35days for the new project.

Q: What's your shipping type?
A: Usually by Fedex,DHL,TNT,EMS etc or Customer appointed.

Q: What's the payment condition?
A: T/T,L/C,VISA,Paypal,Alipay or Negotiation.

Q: What's your quality guarantee period?
A: Three years.
