0.5mm To 50mm Glass Optical Components , Sapphire Optical Glass Rod
Deskripsi
Nama Produk:
Lensa Batang
Bahan:
BK7/Kuarsa/Inframerah/Safir
Diameter:
0,5-50mm
Panjang:
0,5-120mm
Toleransi Diameter/Panjang:
± 0,005mm
Keakuratan permukaan:
N=1-3
Ketidakteraturan:
Perubahan N=0,1-0,5
Kualitas Permukaan:
10/5-60/40
Lapisan:
Berdasarkan permintaan
Area Aplikasi:
Pencitraan, Pencahayaan, Laser, dll
Pelabuhan:
Shanghai atau Persyaratan
Tipe Antarmuka:
Canon EF-S
Diameter:
25 mm
Ketebalan tengah:
5 mm
Toleransi lebar:
+/- 0,01mm
Gaya:
antik
Area Aplikasi:
Pencahayaan, Laser, dll
Membentuk:
Bentuk bola
Toleransi Panjang Fokus:
+/- 1%
Bahan:
kaca optik
Suhu pengoperasian:
-20 sampai 70 °C
Filter Warna Cincin:
Hitam, Perak, Emas
Dukungan yang disesuaikan:
OEM, ODM
Pilihan Pelapisan:
hijau
Indeks bias:
1.52
Panjang Fokus:
150mm
Menyoroti:
60/40 50mm Glass Optical Components
,
60/40 0.5mm Glass Optical Components
,
60/40 Sapphire Optical Glass Rod
Sapphire optical glass micro lens endoscopy rod
A Rod lens is a special type of cylinder lens, and is highly polished on the circumference and ground on both ends. Rod lenses perform in a manner analogous to a standard cylinder lens, and can be used in beam shaping and to focus collimated light into a line. Our rod lenses play a key part in many laser and imaging optical assemblies, and can be used for UV, visible and NIR applications.
Material
BK7, Quartz, Infrared, Sapphire
Diameter
0.5-50mm
Length
0.5-120mm
Diameter Tolerance
±0.005mm
Length Tolerance
±0.005mm
Surface Accuracy
N=1-3
Irregularity
Change In N=0.1-0.5
Surface quality
10/5-60/40
Coating
Upon request
Application Area
Imaging,Lighting,Laser etc

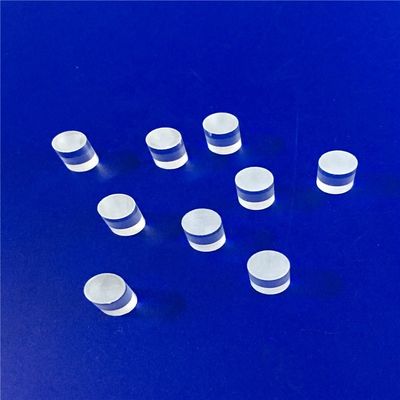

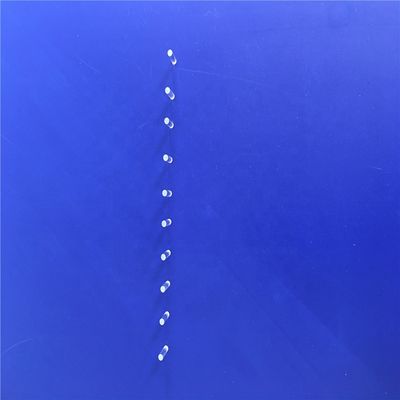

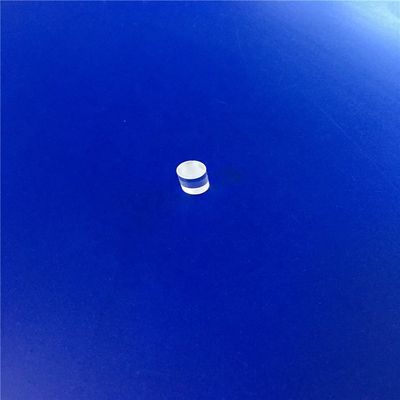

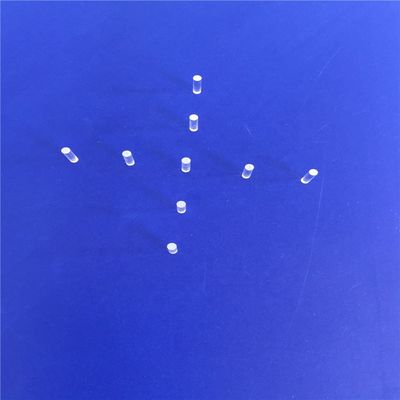

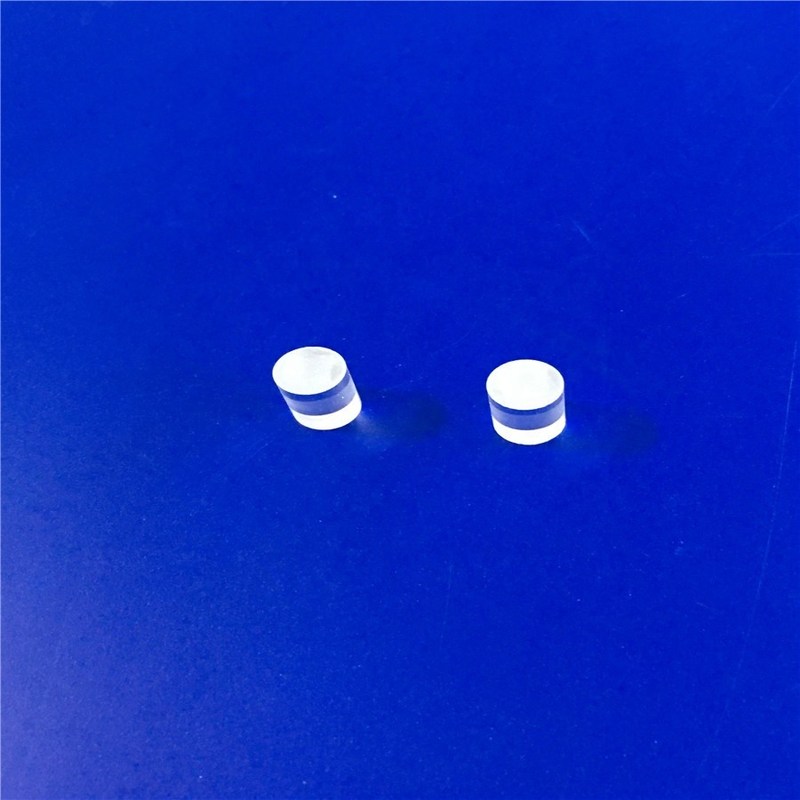

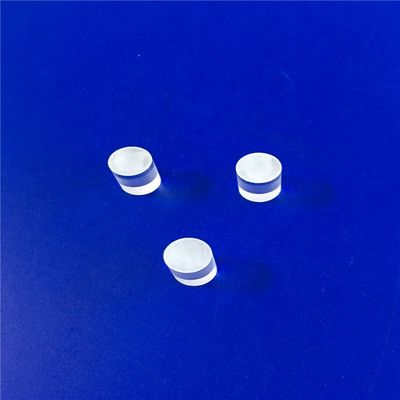

Product Show
Application
Shanghai Advance Optical-Electronics Technology Co., Ltd is specialized in manufacturing optical lenses, locating at Shanghai Qingpu District and half hour driving-distance from Shanghai Hongqiao Airport. Our vision is to create value and provide convenience to society. With almost 10 years’ experience, we have solid and reliable resources for producing different categories of optical and camera lenses, which are commonly installed on imaging, laser and medical equipment, quality and competitive price are our priority. Customization and timing of that are our greatest advantages over competitors. We do accept OEM and ODM within the specification capability and promise to have one-year warranty for all our products. We are looking forward to cooperate with you.
FAQ
What are your main products or Which field do your products be used?
We are specialized in optical design,optical element processing,Lenses assembly,Such as Spherical lens,Aspherical lens,Cylindar lens,Reflector mirror,Filter,Rod lens,Camera lenses etc,and our products are wide used to these filed such as imaging,Laser,Lighting etc.
What’s your advantage?
1. We have about ten thousands optical modules and fixtures in stock,and employ several outstanding technicians and manager,that will enable to provide customer excellent quality in short leadtime,also can save the plenty of develop cost for customer.
2. We can help customer to optimize the optical system which they dislike,and provide the free optical solution or suggestion.
What’s your MOQ?
10pcs.
What’s your leadtime?
1day for inventory and 25~35days for the new project.
What’s your shipping type?
Usually by Fedex,DHL,TNT,EMS etc or Customer appointed.
