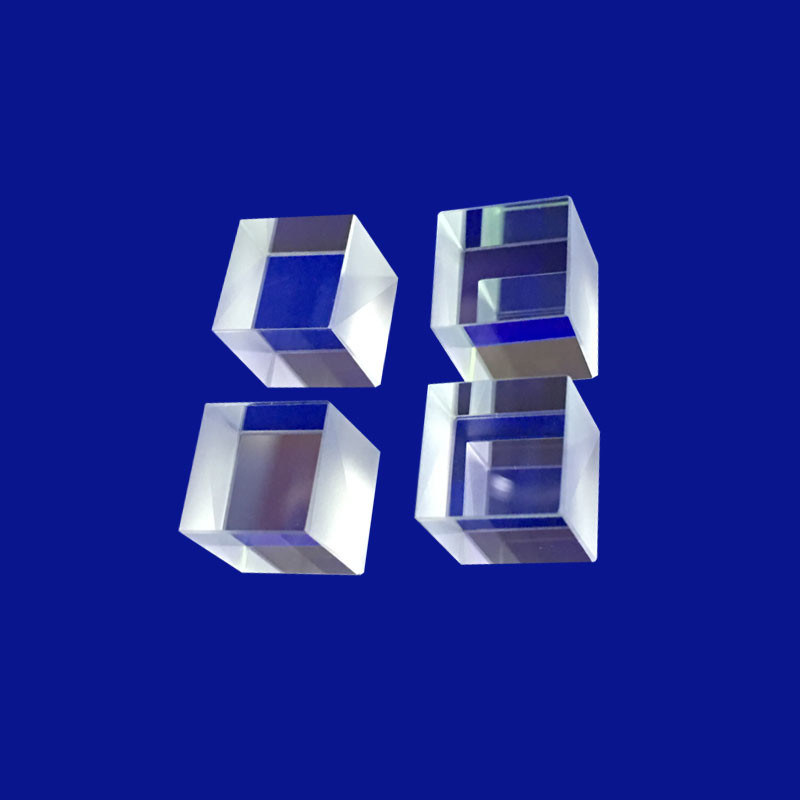

Imaging Lighting Optical Glass Prism For Instruments Device

Imaging Lighting Optical Glass Prism For Instruments Device
Imaging Lighting Optical Glass Prism For Instruments Device

Gambar besar :  Imaging Lighting Optical Glass Prism For Instruments Device

Detail produk:
Tempat asal: Tiongkok
Nama merek: Advance
Sertifikasi: ROHS\Reach
Nomor model: Sebagai Persyaratan
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: $0.2~$100
Kemasan rincian: EVA+Vakum
Waktu pengiriman: 3 ~ 30 hari setelah pesanan
Syarat-syarat pembayaran: T/T&L/C
Menyediakan kemampuan: 1000rb/per bulan
Kontak

Imaging Lighting Optical Glass Prism For Instruments Device

Deskripsi
Jaminan: - Dukungan khusus: OEM, ODM
Bahan: BK7 dan kaca optik lainnya, BK7 dan kaca optik lainnya, kuarsa, safir, Ge,Si,ZnSe,CaF2 dll Kualitas Permukaan: 60/40
Toleransi Dimensi: +/- 0,01mm Toleransi Sudut: 3"~2'
Kebosanan: T=1~3 Panjang: 3-100mm
Lebar: 3-100mm Tinggi: 3-100mm
Toleransi panjang: +/- 0,01mm Toleransi lebar: +/- 0,01mm
Toleransi Sudut: 3"-2' Kualitas Permukaan: 5/10~60/40
Area Aplikasi: Pencitraan, Pencahayaan, Laser, dll Lapisan: Berdasarkan permintaan
Pelabuhan: Shanghai Tipe Antarmuka: Canon EF-S
Diameter: 25 mm Ketebalan tengah: 5 mm
Gaya: antik Area Aplikasi: Pencahayaan, Laser, dll
Membentuk: Bentuk bola Toleransi Panjang Fokus: +/- 1%
Bahan: kaca optik Suhu pengoperasian: -20 sampai 70 °C
Filter Warna Cincin: Hitam, Perak, Emas Pilihan Pelapisan: hijau
Indeks bias: 1.52 Panjang Fokus: 150mm
Menyoroti:

Imaging Lighting Optical Glass Prism

,

Instruments Optical Glass Prism

,

ODM Optical Glass Prism

Customized Diameter BK-7 Optical Glass Lens And Prism For Instruments Device Tools


the equilateral triangular prism can appear seven color light like rainbow when you rotates the prism under the sunshine.

Light goes into one of sides from the prism,then goes out from another side.
the light that has gone out will be deflection refract toward the third side,deflection refraction angle ,

the refraction index of the prism and top angle is concered with the angle of incidence

nanyang jingying processes series optical prisms including:roof prisms, right angle prisms,penta prisms,dove prism,half pentagonal prisms,porro prisms,

Corner Cube Prisms,Beamsplitter Cube,large-size prisms,solar rod prism,X-Cubes assembly,finger print prism,DVD series prisms, agglutinate prism series, etc

we have all kinds of size ,for example:25*25*80mm,30*30*50mm,30*30*100mm,30*30*150mm,40*40*180mm and we can customize size that you need


Specification

Materials BK7 or other optical glass,quartz,sapphire,Ge,Si,ZnSe,CaF2 etc
Length 3~100mm
Width 3~100mm
Height 3~100mm
Length tolerance +/-0.01mm
Width tolerance +/-0.01mm
Height tolerance +/-0.01mm
Angle tolerance 3"~2'
Irregularity ΔN=0.1~0.5
Surface accuracy N=1~3
Surface quality 10/5~60/40
Coating Upon request
Application area Imaging,Lighting,Laser etc





Imaging Lighting Optical Glass Prism For Instruments Device 0


Imaging Lighting Optical Glass Prism For Instruments Device 1
Imaging Lighting Optical Glass Prism For Instruments Device 2

Imaging Lighting Optical Glass Prism For Instruments Device 3
Imaging Lighting Optical Glass Prism For Instruments Device 4

Imaging Lighting Optical Glass Prism For Instruments Device 5

Recommend Products
Imaging Lighting Optical Glass Prism For Instruments Device 6
Company Profile
Imaging Lighting Optical Glass Prism For Instruments Device 7


Shanghai Advance Optical-Electronics Technology Co., Ltd. is a technology-based production enterprise,officially established in September 2009,the plant site located in Qingpu Industrial Park, Shanghai, only half an hour's drive from Shanghai Hongqiao International Airport. The company gathers several excellent technicans in optical industry, has comprehensive supporting capabilities such as optical mechanical and electrical design, processing and sales services, and wholeheartedly provides each customer with high-quality and convenient products and services. Business scope: optical mechanical and electrical module development, precision optical element processing, camera lens design and processing, optical design and optical path optimization solution, technical consultation and after-sales service. Application fields: machine vision, artificial intelligence, biomedical, smart city, high-end monitoring, testing instruments, military equipment, laser etching, special lighting, scientific research institutions, etc.



Company Advantages:

1. Have comprehensive design, production and sales capabilities, and provide customers with one-stop convenient procurement services; 2. It has tens of thousands of optical molds and samples, which can provide customers with fast proofing services with low cost; 3. Be able to participate in the customer's new product research and development early, provide feasible plans and suggestions, and make the project less detours;
Certifications
Imaging Lighting Optical Glass Prism For Instruments Device 8
Exhibition
Imaging Lighting Optical Glass Prism For Instruments Device 9
Packing & Delivery
Imaging Lighting Optical Glass Prism For Instruments Device 10
Imaging Lighting Optical Glass Prism For Instruments Device 11

FAQ
Q: What are your main products or Which fiefd do your products be used?
A: We are specialized in optical design.optical element processing,Lenses assembly,Such as Spherical lens,Aspherical
lens,Cylindarlens,Reflector mirror,Filter,Rod lens,Camera lenses etc,and our products are wide used to these filed such as
imaging,Laser,Lighting etc.

Q: What's your advantage?
1. We have about ten thousands optical modules and fixturesin stock,and employ several outstanding technicians and manager.that
will enable to provide customer excellent quality in shortleadtime,also can save the plenty of develop cost for customer.
2. We can help customer to optimize the optical system whichthey dislike,and provide the free optical solution or suggestion.
Q: What's your MOQ?
A: 10pcs.
Q: What's your leadtime?
A: 1day for inventory and 25~35days for the new project.

Q: What's your shipping type?
A: Usually by Fedex,DHL,TNT,EMS etc or Customer appointed.

Q: What's the payment condition?
A: T/T,L/C,VISA,Paypal,Alipay or Negotiation.

Q: What's your quality guarantee period?
A: Three years.
