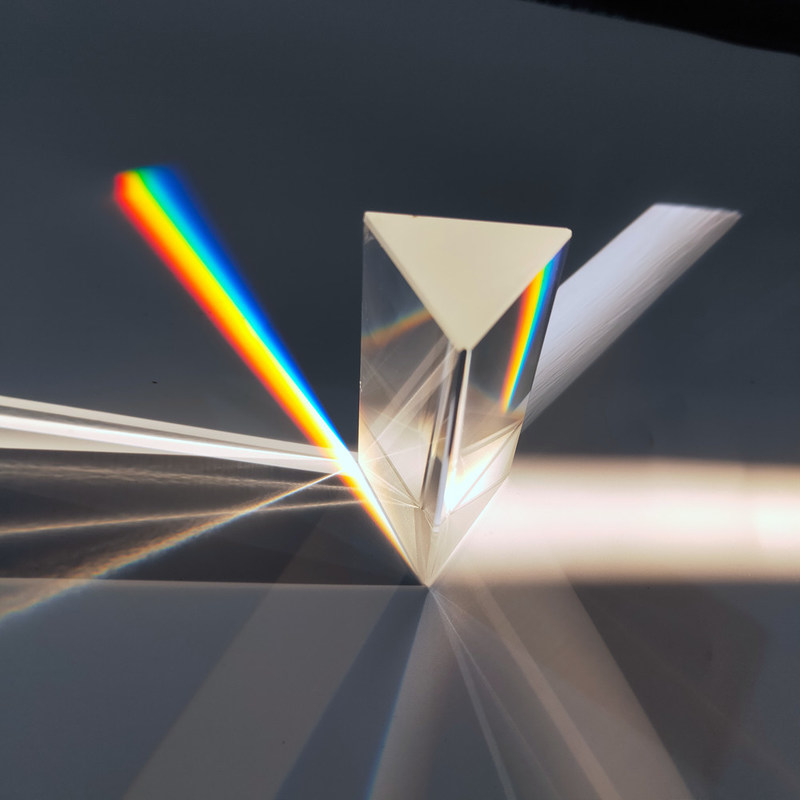

Optical Right Angle Glass Prism Shape Customizable For Lighting

Optical Right Angle Glass Prism Shape Customizable For Lighting
Optical Right Angle Glass Prism Shape Customizable For Lighting

Gambar besar :  Optical Right Angle Glass Prism Shape Customizable For Lighting

Detail produk:
Tempat asal: Shanghai, Cina
Nama merek: advance
Nomor model: 005
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10 buah
Kemasan rincian: Vakum+EVA+Karton
Menyediakan kemampuan: 10000000 Potongan/potongan per Bulan
Kontak

Optical Right Angle Glass Prism Shape Customizable For Lighting

Deskripsi
Jaminan: - Dukungan khusus: OEM, ODM
Bahan: BK7 dan kaca optik lainnya, BK7 dan kaca optik lainnya, kuarsa, safir, Ge,Si,ZnSe,CaF2 dll Kualitas Permukaan: 60/40
Toleransi Dimensi: +/- 0,01mm Toleransi Sudut: 3"~2'
Kebosanan: T=1~3 Panjang: 3-100mm
Lebar: 3-100mm Tinggi: 3-100mm
Toleransi panjang: +/- 0,01mm Toleransi lebar: +/- 0,01mm
Toleransi Sudut: 3"-2' Kualitas Permukaan: 5/10~60/40
Area Aplikasi: Pencitraan, Pencahayaan, Laser, dll Lapisan: Berdasarkan permintaan
Pelabuhan: Shanghai
Menyoroti:

Right Angle Optical Prism Lens

,

Shape Customizable Fused Quartz Prism

,

Lighting Triangular Glass Prism

Strictly inspected shape customizable optical right angle glass prism



Right angle prisms are generally used to bend image paths or redirect light at 90°. This produces a left handed image and depending on the orientation of the prism, the image may be inverted or reverted. Right angle prisms can also be used in combination for image/beam displacement. UV Fused Silica Right Angle Prisms are made from UV fused silica which features low thermal expansion and excellent transmission throughout the UV, visible, and NIR spectral ranges.

Specification
Dimensional Tolerance
±0.1mm
Angle Tolerance
±2 Arcmin
Surface Flatness
1/4 Lambda or 1/8Lambda
Surface Quality
60/40, 40/20 or better
Material
BK7/K9/UV fused silica
Clear aperture
>90%
Bevel
Protective bevel as needed
Coating
Custom





Optical Right Angle Glass Prism Shape Customizable For Lighting 0


Optical Right Angle Glass Prism Shape Customizable For Lighting 1
Optical Right Angle Glass Prism Shape Customizable For Lighting 2

Optical Right Angle Glass Prism Shape Customizable For Lighting 3
Optical Right Angle Glass Prism Shape Customizable For Lighting 4

Optical Right Angle Glass Prism Shape Customizable For Lighting 5

Recommend Products
Optical Right Angle Glass Prism Shape Customizable For Lighting 6
Company Profile
Optical Right Angle Glass Prism Shape Customizable For Lighting 7


Shanghai Advance Optical-Electronics Technology Co., Ltd. is a technology-based production enterprise,officially established in September 2009,the plant site located in Qingpu Industrial Park, Shanghai, only half an hour's drive from Shanghai Hongqiao International Airport. The company gathers several excellent technicans in optical industry, has comprehensive supporting capabilities such as optical mechanical and electrical design, processing and sales services, and wholeheartedly provides each customer with high-quality and convenient products and services. Business scope: optical mechanical and electrical module development, precision optical element processing, camera lens design and processing, optical design and optical path optimization solution, technical consultation and after-sales service. Application fields: machine vision, artificial intelligence, biomedical, smart city, high-end monitoring, testing instruments, military equipment, laser etching, special lighting, scientific research institutions, etc.



Company Advantages:

1. Have comprehensive design, production and sales capabilities, and provide customers with one-stop convenient procurement services; 2. It has tens of thousands of optical molds and samples, which can provide customers with fast proofing services with low cost; 3. Be able to participate in the customer's new product research and development early, provide feasible plans and suggestions, and make the project less detours;
Certifications
Optical Right Angle Glass Prism Shape Customizable For Lighting 8
Exhibition
Optical Right Angle Glass Prism Shape Customizable For Lighting 9
Packing & Delivery
Optical Right Angle Glass Prism Shape Customizable For Lighting 10
Optical Right Angle Glass Prism Shape Customizable For Lighting 11

FAQ
Q: What are your main products or Which fiefd do your products be used?
A: We are specialized in optical design.optical element processing,Lenses assembly,Such as Spherical lens,Aspherical
lens,Cylindarlens,Reflector mirror,Filter,Rod lens,Camera lenses etc,and our products are wide used to these filed such as
imaging,Laser,Lighting etc.

Q: What's your advantage?
1. We have about ten thousands optical modules and fixturesin stock,and employ several outstanding technicians and manager.that
will enable to provide customer excellent quality in shortleadtime,also can save the plenty of develop cost for customer.
2. We can help customer to optimize the optical system whichthey dislike,and provide the free optical solution or suggestion.
Q: What's your MOQ?
A: 10pcs.
Q: What's your leadtime?
A: 1day for inventory and 25~35days for the new project.

Q: What's your shipping type?
A: Usually by Fedex,DHL,TNT,EMS etc or Customer appointed.

Q: What's the payment condition?
A: T/T,L/C,VISA,Paypal,Alipay or Negotiation.

Q: What's your quality guarantee period?
A: Three years.
