Detail produk:
|
| Dukungan khusus: | OEM, ODM | Menggunakan: | Optik |
|---|---|---|---|
| Bahan: | BK7 atau kaca optik lainnya, kuarsa, safir, Si, ZnSe, CaF2 dll. | Panjang fokus: | +/-3000mm |
| Lapisan: | Berdasarkan permintaan | Toleransi diameter: | +/- 0,005 |
| Toleransi ketebalan: | +/-0,01 | Kualitas Permukaan: | 5/10~60/40 |
| Keakuratan permukaan: | T=1~3 | Area Aplikasi: | Pencahayaan, Laser, dll |

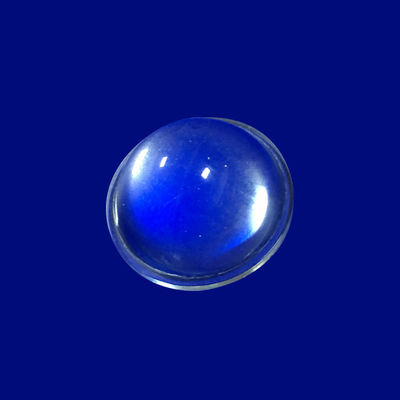

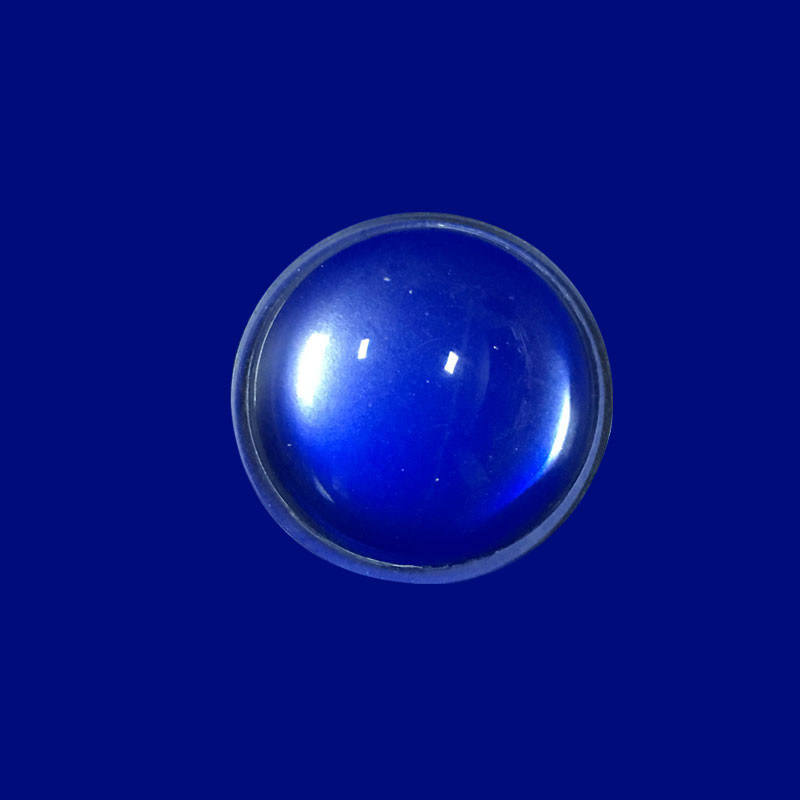

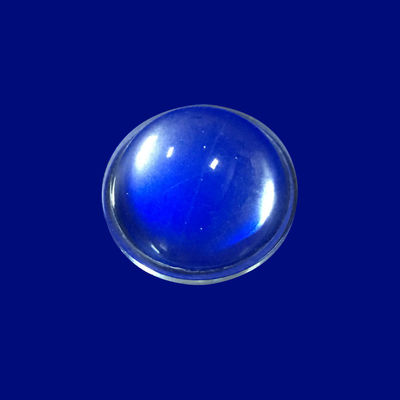

PMMA convex lens focus light optical acrylic LED lens
Plano-convex lenses are positive focal length elements that have one spherical surface and one flat surface. These lenses are designed for infinite conjugate (parallel light) use or simple imaging in non-critical applications. These optic lenses are ideal for all-purpose focusing elements.
Esco manufactures Plano-convex lenses from S1-UV Grade Fused Silica, G1 Fused Quartz, Commercial Grade, and BK7 Optical Glass.Every optic is pitch polished, providing good surface quality and an exceptional low-cost imaging performance with a variety of light sources.
| Material | BK7 or others optical glass,quartz,sapphire,Si,ZnSe,CaF2 etc. |
| Diameter | 1.5~300mm |
| Center thickness tolerance | +/-0.01mm |
| Length tolerance | +/-0.01mm |
| Width tolerance | +/-0.01mm |
| Diameter tolerance | +/-0.0005mm |
| Surface accuracy | N=1~3 |
| Irregularity | ΔN=0.1~0.5 |
| Surface quality | 10/5~60/40 |
| Coating | Upon request |
| Application area | Imaging,Lighting,Laser etc |
machine vision, artificial intelligence, biomedical, smart city, high-end monitoring, testing instruments, military equipment, laser etching, special lighting, scientific research institutions, etc.
