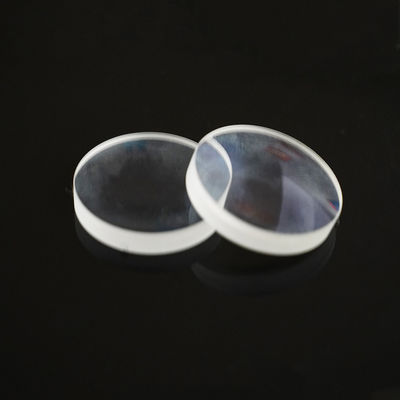

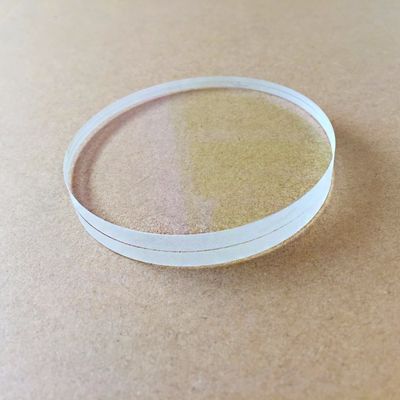

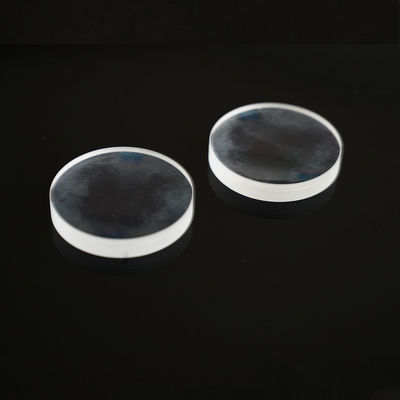

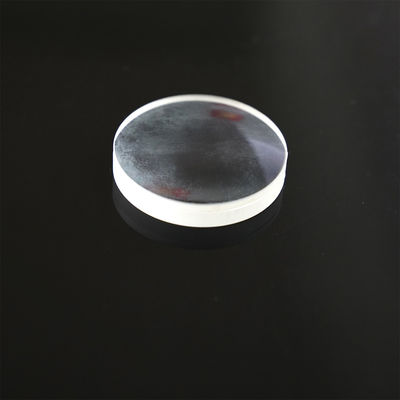

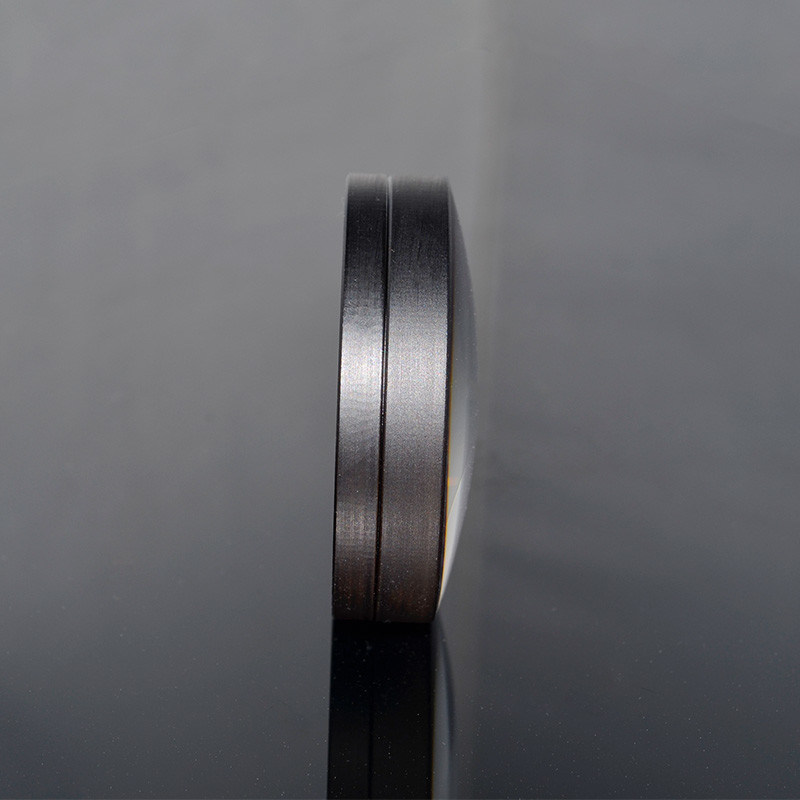

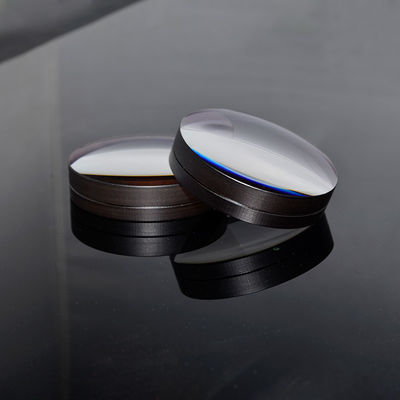

High Temp Optical Double Cemented Round Glass Lens

kualitas High Temp Optical Double Cemented Round Glass Lens pabrik
kualitas High Temp Optical Double Cemented Round Glass Lens pabrik
kualitas High Temp Optical Double Cemented Round Glass Lens pabrik
kualitas High Temp Optical Double Cemented Round Glass Lens pabrik
kualitas High Temp Optical Double Cemented Round Glass Lens pabrik
kualitas High Temp Optical Double Cemented Round Glass Lens pabrik
Spesifikasi Produk
Tempat Asal: Tiongkok
Nama merek: Advance
Sertifikasi: ROHS\Reach
Nomor Model: Sebagai Persyaratan
Jumlah Pesanan Minimum: 1
Harga: $0.2~$100
Ketentuan Pembayaran: T/T&L/C
Kemampuan Pasokan: 1000k/per bulan
Detail Produk
Menyoroti:

Cemented Round Glass Lens

,

Double round glass lens

,

Optical cemented lens
Customized Support: OEM, ODM
Usage: Optik
Shape: Bentuk bola
Focal Length: Kebiasaan
Coating: Berdasarkan permintaan
Diameter Tolerance: +/- 0,005mm
Surface Accuracy: N=1~0,5
Centerthickness Tolerance: +/- 0,001mm
Focal Length Tolerance: +/- 1%
Surface Quality: 5/10~60/40
Application Area: Pencitraan, Pencahayaan, Laser, dll
Port: Shanghai
Interface Type: Canon EF-S
Diameter: 25 mm
Centerthickness: 5 mm
Width Tolerance: +/- 0,01mm
Style: antik
Application Area: Pencahayaan, Laser, dll
Material: kaca optik
Operatingtemperature: -20 sampai 70 °C
Filter Ring Color: Hitam, Perak, Emas
Coating Choice: hijau
Refractiveindex: 1.52
Focal Length: 150mm
Deskripsi Produk
High Temp Round Optical Glass Double Achromatic Lens Cemented Lenses

Specification

Cemented lens: The cemented lens is also called an achromatic lens, which is formed by cementing two single lens elements. The performance of multi-color (white light) imaging is much higher than that of a single lens. The achromatic lens consists of two lenses of different materials glued together to correct the dispersion of the glass. Eliminating the problem of chromatic aberration, achromatic lenses have been widely used in multi-color lighting and imaging, improving cost-effectiveness.

Materials BK7 or other optical glass,quartz,sapphire,Ge,Si,ZnSe,CaF2 etc
Diameter 1.5~300mm
Radius R0.8mm-∞
Focal length -30000mm~+30000mm
Center thickness tolerance +/-0.01mm
Diameter tolerance +/-0.005mm
Focal length tolerance +/-1%
Surface accuracy N=1~3
Irregularity ΔN=0.1~0.5
Decenter 3''~1''
Surface quality 10/5~60/40
Coating Upon request
Application area Imaging,Lighting,Laser etc





High Temp Optical Double Cemented Round Glass Lens 0


High Temp Optical Double Cemented Round Glass Lens 2

High Temp Optical Double Cemented Round Glass Lens 4
High Temp Optical Double Cemented Round Glass Lens 6
High Temp Optical Double Cemented Round Glass Lens 8
High Temp Optical Double Cemented Round Glass Lens 10

Recommend Products
High Temp Optical Double Cemented Round Glass Lens 11
Company Profile
High Temp Optical Double Cemented Round Glass Lens 12


Shanghai Advance Optical-Electronics Technology Co., Ltd. is a technology-based production enterprise,officially established in September 2009,the plant site located in Qingpu Industrial Park, Shanghai, only half an hour's drive from Shanghai Hongqiao International Airport. The company gathers several excellent technicans in optical industry, has comprehensive supporting capabilities such as optical mechanical and electrical design, processing and sales services, and wholeheartedly provides each customer with high-quality and convenient products and services. Business scope: optical mechanical and electrical module development, precision optical element processing, camera lens design and processing, optical design and optical path optimization solution, technical consultation and after-sales service. Application fields: machine vision, artificial intelligence, biomedical, smart city, high-end monitoring, testing instruments, military equipment, laser etching, special lighting, scientific research institutions, etc.



Company Advantages:

1. Have comprehensive design, production and sales capabilities, and provide customers with one-stop convenient procurement services; 2. It has tens of thousands of optical molds and samples, which can provide customers with fast proofing services with low cost; 3. Be able to participate in the customer's new product research and development early, provide feasible plans and suggestions, and make the project less detours;
Certifications
High Temp Optical Double Cemented Round Glass Lens 13
Exhibition
High Temp Optical Double Cemented Round Glass Lens 14
Packing & Delivery
High Temp Optical Double Cemented Round Glass Lens 15
High Temp Optical Double Cemented Round Glass Lens 16

FAQ
Q: What are your main products or Which fiefd do your products be used?
A: We are specialized in optical design.optical element processing,Lenses assembly,Such as Spherical lens,Aspherical
lens,Cylindarlens,Reflector mirror,Filter,Rod lens,Camera lenses etc,and our products are wide used to these filed such as
imaging,Laser,Lighting etc.

Q: What's your advantage?
1. We have about ten thousands optical modules and fixturesin stock,and employ several outstanding technicians and manager.that
will enable to provide customer excellent quality in shortleadtime,also can save the plenty of develop cost for customer.
2. We can help customer to optimize the optical system whichthey dislike,and provide the free optical solution or suggestion.
Q: What's your MOQ?
A: 10pcs.
Q: What's your leadtime?
A: 1day for inventory and 25~35days for the new project.

Q: What's your shipping type?
A: Usually by Fedex,DHL,TNT,EMS etc or Customer appointed.

Q: What's the payment condition?
A: T/T,L/C,VISA,Paypal,Alipay or Negotiation.

Q: What's your quality guarantee period?
A: Three years.
