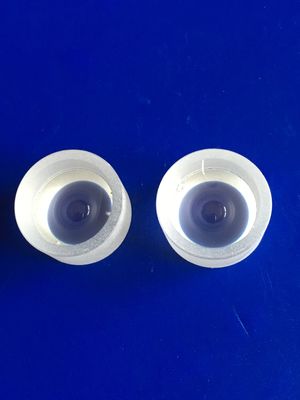

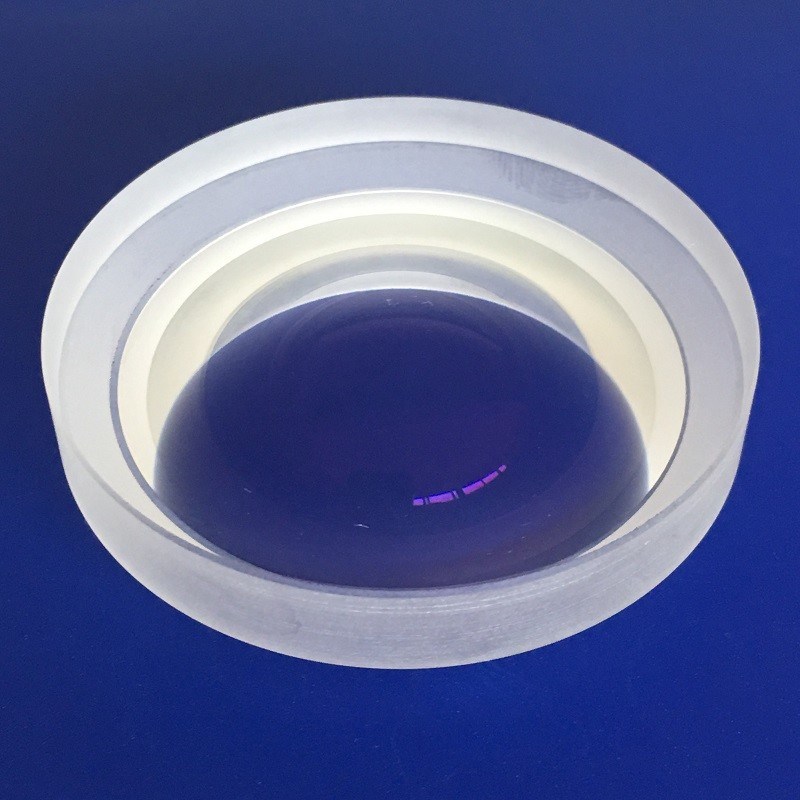

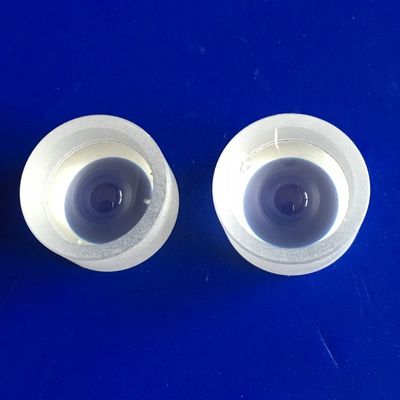

Clear Ge BK7 1.5mm To 300mm ZnSe Double Concave Lens
Spesifikasi Produk
Tempat Asal:
Tiongkok
Nama merek:
Advance
Sertifikasi:
ROHS\Reach
Nomor Model:
Sebagai Persyaratan
Jumlah Pesanan Minimum:
1
Harga:
$0.2~$100
Ketentuan Pembayaran:
T/T&L/C
Kemampuan Pasokan:
1000rb/per bulan
Detail Produk
Menyoroti:
ZnSe Double Concave Lens
,300mm double concave lens
,1.5mm biconcave lens
Product Name:
Lensa Kaca Optik
Vision Effect:
lentikular
Lenses Color:
Jernih
Focal Length:
Kebiasaan
Diameter:
Kebiasaan
Diameter Tolerance:
+/- 0,005mm
Surface Accuracy:
N=1~0,5
Centerthickness Tolerance:
+/- 0,001mm
Focal Length Tolerance:
+/- 1%
Surface Quality:
5/10~60/40
Application Area:
Pencitraan, Pencahayaan, Laser, dll
Interface Type:
Canon EF-S
Diameter:
25 mm
Centerthickness:
5 mm
Width Tolerance:
+/- 0,01mm
Style:
antik
Application Area:
Pencahayaan, Laser, dll
Shape:
Bentuk bola
Material:
kaca optik
Operatingtemperature:
-20 sampai 70 °C
Filter Ring Color:
Hitam, Perak, Emas
Customized Support:
OEM, ODM
Coating Choice:
hijau
Refractiveindex:
1.52
Focal Length:
150mm
Deskripsi Produk
Focal Length Concave Glass Nova Display Fiber Uncoated Plano-concave Lenses Double concave Lens
Advance Optical-Electronics manufactures various shape and materials optical lens. Wide selection of optical lens includes spherical lens, aspherical lens, cylindrical lens, magnifying lens, Plano-convex lens, Plano-concave lens, Biconvex lens, Biconcave lens, Meniscus lens, CaF2 Lens, Achromatic lens, Ball lens, Other Optical Lenses.
Coatings for lens include normal BBAR coating, dichroic coating, super broad band antire+flective coating, filtering coating, reflective coating and others coating according to customer's requirement.
Application: optical lens are widely used for precision optical instruments, TV projector, microscopes, collimator, digital cameras, LCOS, lens assembly and cctv /ccd digital cameras, etc.
Coatings for lens include normal BBAR coating, dichroic coating, super broad band antire+flective coating, filtering coating, reflective coating and others coating according to customer's requirement.
Application: optical lens are widely used for precision optical instruments, TV projector, microscopes, collimator, digital cameras, LCOS, lens assembly and cctv /ccd digital cameras, etc.
Specification
| Materials | BK7 or other optical glass,quartz,sapphire,Ge,Si,ZnSe,CaF2 etc |
| Diameter | 1.5~300mm |
| Radius | R0.8mm-∞ |
| Focal length | -30000mm~+30000mm |
| Center thickness tolerance | +/-0.01mm |
| Diameter tolerance | +/-0.005mm |
| Focal length tolerance | +/-1% |
| Surface accuracy | N=1~3 |
| Irregularity | ΔN=0.1~0.5 |
| Decenter | 3''~1'' |
| Surface quality | 10/5~60/40 |
| Coating | Upon request |
| Application area | Imaging,Lighting,Laser etc |
Recommend Products
Company Profile
Shanghai Advance Optical-Electronics Technology Co., Ltd. is a technology-based production enterprise,officially established in September 2009,the plant site located in Qingpu Industrial Park, Shanghai, only half an hour's drive from Shanghai Hongqiao International Airport. The company gathers several excellent technicans in optical industry, has comprehensive supporting capabilities such as optical mechanical and electrical design, processing and sales services, and wholeheartedly provides each customer with high-quality and convenient products and services. Business scope: optical mechanical and electrical module development, precision optical element processing, camera lens design and processing, optical design and optical path optimization solution, technical consultation and after-sales service. Application fields: machine vision, artificial intelligence, biomedical, smart city, high-end monitoring, testing instruments, equipment, laser etching, special lighting, scientific research institutions, etc. Company Advantages:
1. Have comprehensive design, production and sales capabilities, and provide customers with one-stop convenient procurement services; 2. It has tens of thousands of optical molds and samples, which can provide customers with fast proofing services with low cost; 3. Be able to participate in the customer's new product research and development early, provide feasible plans and suggestions, and make the project less detours;
Certifications
Exhibition
Packing & Delivery
FAQ
Q: What are your main products or Which fiefd do your products be used?
A: We are specialized in optical design.optical element processing,Lenses assembly,Such as Spherical lens,Aspherical
lens,Cylindarlens,Reflector mirror,Filter,Rod lens,Camera lenses etc,and our products are wide used to these filed such as
imaging,Laser,Lighting etc.
Q: What's your advantage?
1. We have about ten thousands optical modules and fixturesin stock,and employ several outstanding technicians and manager.that
will enable to provide customer excellent quality in shortleadtime,also can save the plenty of develop cost for customer.
2. We can help customer to optimize the optical system whichthey dislike,and provide the free optical solution or suggestion.
A: We are specialized in optical design.optical element processing,Lenses assembly,Such as Spherical lens,Aspherical
lens,Cylindarlens,Reflector mirror,Filter,Rod lens,Camera lenses etc,and our products are wide used to these filed such as
imaging,Laser,Lighting etc.
Q: What's your advantage?
1. We have about ten thousands optical modules and fixturesin stock,and employ several outstanding technicians and manager.that
will enable to provide customer excellent quality in shortleadtime,also can save the plenty of develop cost for customer.
2. We can help customer to optimize the optical system whichthey dislike,and provide the free optical solution or suggestion.
Q: What's your MOQ?
A: 10pcs.
A: 10pcs.
Q: What's your leadtime?
A: 1day for inventory and 25~35days for the new project.
Q: What's your shipping type?
A: Usually by Fedex,DHL,TNT,EMS etc or Customer appointed.
Q: What's the payment condition?
A: T/T,L/C,VISA,Paypal,Alipay or Negotiation.
Q: What's your quality guarantee period?
A: Three years.
Q: What's your shipping type?
A: Usually by Fedex,DHL,TNT,EMS etc or Customer appointed.
Q: What's the payment condition?
A: T/T,L/C,VISA,Paypal,Alipay or Negotiation.
Q: What's your quality guarantee period?
A: Three years.
