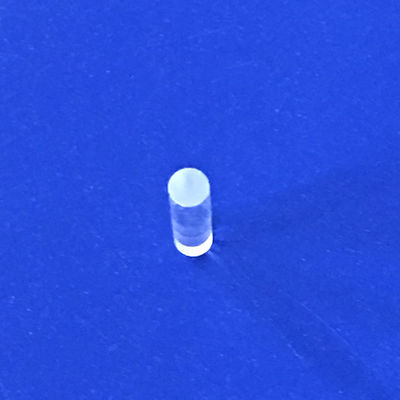

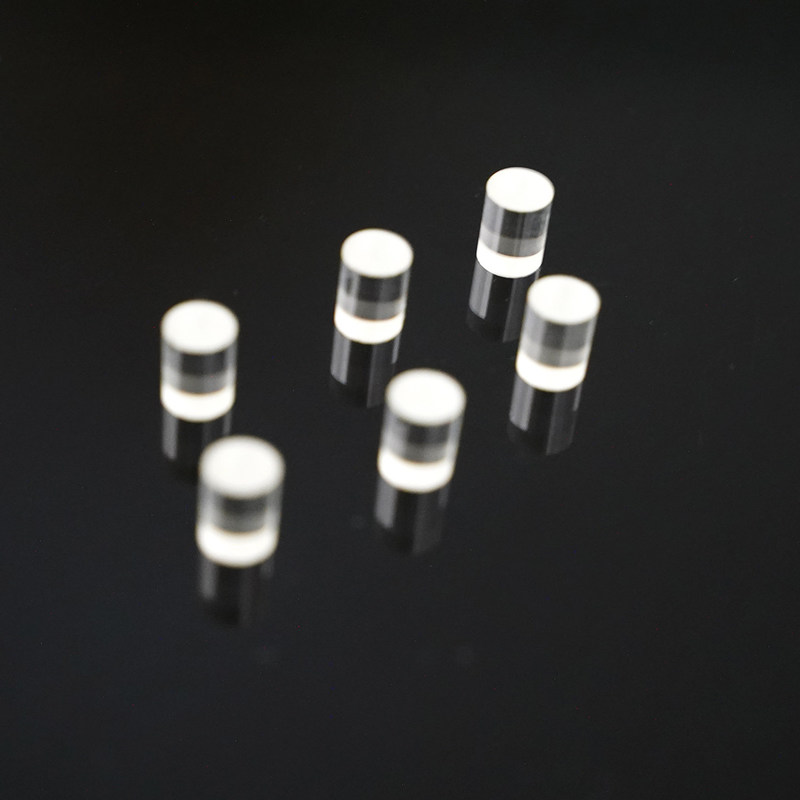

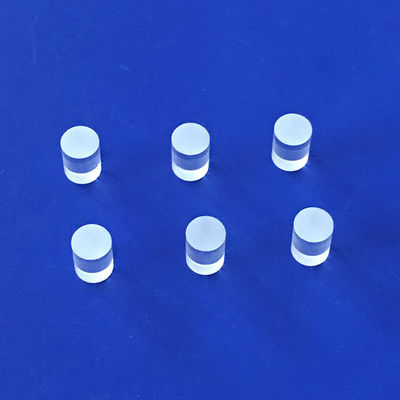

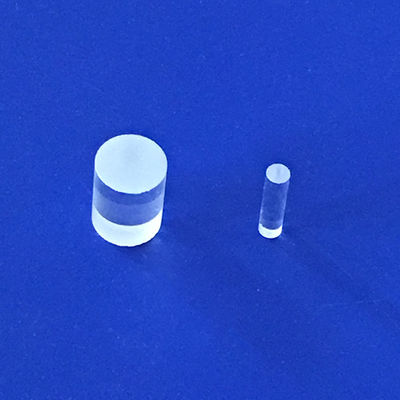

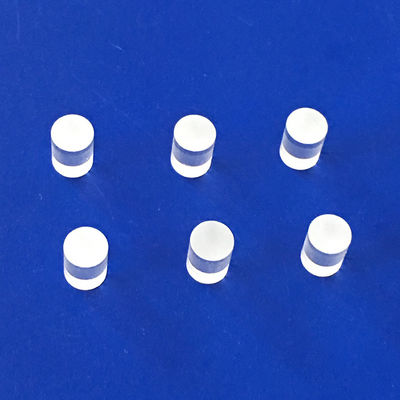

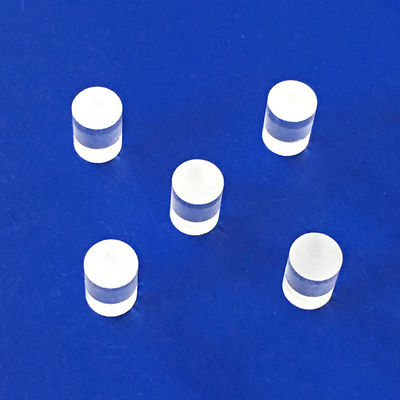

1mm To 50mm Rod Lens , BK7 JGS1 Fused Quartz Rod

1mm To 50mm Rod Lens , BK7 JGS1 Fused Quartz Rod
1mm To 50mm Rod Lens , BK7 JGS1 Fused Quartz Rod 1mm To 50mm Rod Lens , BK7 JGS1 Fused Quartz Rod 1mm To 50mm Rod Lens , BK7 JGS1 Fused Quartz Rod 1mm To 50mm Rod Lens , BK7 JGS1 Fused Quartz Rod 1mm To 50mm Rod Lens , BK7 JGS1 Fused Quartz Rod 1mm To 50mm Rod Lens , BK7 JGS1 Fused Quartz Rod

Gambar besar :  1mm To 50mm Rod Lens , BK7 JGS1 Fused Quartz Rod

Detail produk:
Tempat asal: Shanghai, Cina
Nama merek: Advance
Nomor model: 005
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 100 buah
Harga: $15.00/Pieces 100-999 Pieces
Kemasan rincian: Tas Vakum/Tas PE/Tas Gelembung Udara/Busa EPE/Karton
Menyediakan kemampuan: 500000 Potongan/potongan per Bulan
Kontak

1mm To 50mm Rod Lens , BK7 JGS1 Fused Quartz Rod

Deskripsi
Jaminan: - Dukungan khusus: OEM, ODM
Penggunaan: Optik Struktur: Tulang
Membentuk: Tulang Nama Produk: Lensa Batang
Bahan: BK7/Kuarsa/Inframerah/Safir Diameter: 0,5-50mm
Panjang: 0,5-120mm Toleransi Diameter/Panjang: ± 0,005mm
Keakuratan permukaan: N=1-3 Ketidakteraturan: Perubahan N=0,1-0,5
Kualitas Permukaan: 10/5-60/40 Lapisan: Berdasarkan permintaan
Area Aplikasi: Pencitraan, Pencahayaan, Laser, dll Pelabuhan: Shanghai atau Persyaratan
Menyoroti:

60/40 50mm Rod Lens

,

60/40 1mm Rod Lens

,

60/40 JGS1 Fused Quartz Rod

Wholesale Custom Optical glass BK7 JGS1 Cylinder Rod Dia1mm-50mm endoscope rod lens

Specification


Optical JGS1 fused silica quartz glass rod optics endoscope lens.



Endoscope rod lens
Optical Rod lenses are used for medical use (rigid scope, endoscope) and could resist to 134 degree for about 5 minutes because they are sterilizated.

Material

 BK7, Quartz, Infrared, Sapphire
Diameter 0.5-50mm
Length 0.5-120mm
Diameter Tolerance ±0.005mm
Length Tolerance ±0.005mm
Irregularity Change In N=0.1-0.5
Surface quality 10/5-60/40
Coating
Upon request
Application Area Imaging,Lighting,Laser etc


1mm To 50mm Rod Lens , BK7 JGS1 Fused Quartz Rod 0


1mm To 50mm Rod Lens , BK7 JGS1 Fused Quartz Rod 1


1mm To 50mm Rod Lens , BK7 JGS1 Fused Quartz Rod 2

Recommend Products
1mm To 50mm Rod Lens , BK7 JGS1 Fused Quartz Rod 3
Company Profile
1mm To 50mm Rod Lens , BK7 JGS1 Fused Quartz Rod 4


Shanghai Advance Optical-Electronics Technology Co., Ltd. is a technology-based production enterprise,officially established in September 2009,the plant site located in Qingpu Industrial Park, Shanghai, only half an hour's drive from Shanghai Hongqiao International Airport. The company gathers several excellent technicans in optical industry, has comprehensive supporting capabilities such as optical mechanical and electrical design, processing and sales services, and wholeheartedly provides each customer with high-quality and convenient products and services. Business scope: optical mechanical and electrical module development, precision optical element processing, camera lens design and processing, optical design and optical path optimization solution, technical consultation and after-sales service. Application fields: machine vision, artificial intelligence, biomedical, smart city, high-end monitoring, testing instruments, military equipment, laser etching, special lighting, scientific research institutions, etc.



Company Advantages:

1. Have comprehensive design, production and sales capabilities, and provide customers with one-stop convenient procurement services; 2. It has tens of thousands of optical molds and samples, which can provide customers with fast proofing services with low cost; 3. Be able to participate in the customer's new product research and development early, provide feasible plans and suggestions, and make the project less detours;
Certifications
1mm To 50mm Rod Lens , BK7 JGS1 Fused Quartz Rod 5
Exhibition
1mm To 50mm Rod Lens , BK7 JGS1 Fused Quartz Rod 6
Packing & Delivery
1mm To 50mm Rod Lens , BK7 JGS1 Fused Quartz Rod 7
1mm To 50mm Rod Lens , BK7 JGS1 Fused Quartz Rod 8

FAQ
Q: What are your main products or Which fiefd do your products be used?
A: We are specialized in optical design.optical element processing,Lenses assembly,Such as Spherical lens,Aspherical
lens,Cylindarlens,Reflector mirror,Filter,Rod lens,Camera lenses etc,and our products are wide used to these filed such as
imaging,Laser,Lighting etc.

Q: What's your advantage?
1. We have about ten thousands optical modules and fixturesin stock,and employ several outstanding technicians and manager.that
will enable to provide customer excellent quality in shortleadtime,also can save the plenty of develop cost for customer.
2. We can help customer to optimize the optical system whichthey dislike,and provide the free optical solution or suggestion.
Q: What's your MOQ?
A: 10pcs.
Q: What's your leadtime?
A: 1day for inventory and 25~35days for the new project.

Q: What's your shipping type?
A: Usually by Fedex,DHL,TNT,EMS etc or Customer appointed.

Q: What's the payment condition?
A: T/T,L/C,VISA,Paypal,Alipay or Negotiation.

Q: What's your quality guarantee period?
A: Three years.
