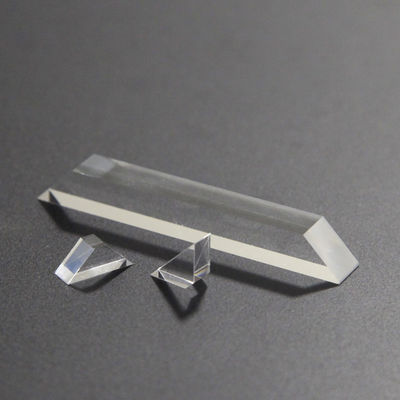

10/5 To 60/40 BK7 Optical Glass Prism For Instruments Device Tools
60/40 Optical Glass Prism
,10/5 Optical Glass Prism
,10/5 BK7 optical prism

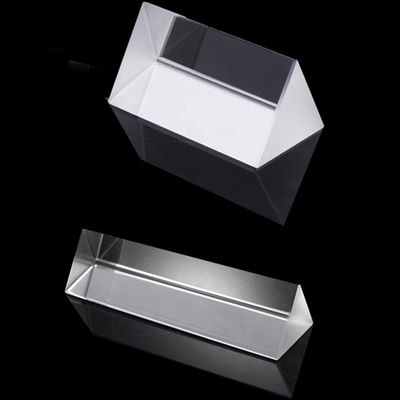

the equilateral triangular prism can appear seven color light like rainbow when you rotates the prism under the sunshine.
Light goes into one of sides from the prism,then goes out from another side.
the light that has gone out will be deflection refract toward the third side,deflection refraction angle ,
the refraction index of the prism and top angle is concered with the angle of incidence

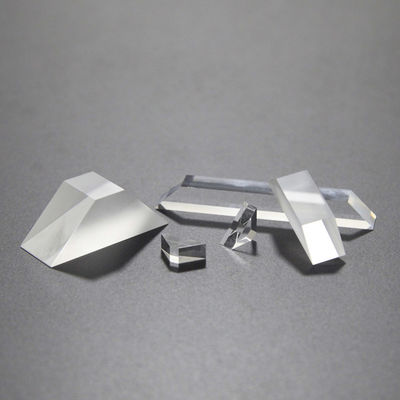

nanyang jingying processes series optical prisms including:roof prisms, right angle prisms,penta prisms,dove prism,half pentagonal prisms,porro prisms,
Corner Cube Prisms,Beamsplitter Cube,large-size prisms,solar rod prism,X-Cubes assembly,finger print prism,DVD series prisms, agglutinate prism series, etc
we have all kinds of size ,for example:25*25*80mm,30*30*50mm,30*30*100mm,30*30*150mm,40*40*180mm and we can customize size that you need
| Materials | BK7 or other optical glass,quartz,sapphire,Ge,Si,ZnSe,CaF2 etc |
| Length | 3~100mm |
| Width | 3~100mm |
| Height | 3~100mm |
| Length tolerance | +/-0.01mm |
| Width tolerance | +/-0.01mm |
| Height tolerance | +/-0.01mm |
| Angle tolerance | 3"~2' |
| Irregularity | ΔN=0.1~0.5 |
| Surface accuracy | N=1~3 |
| Surface quality | 10/5~60/40 |
| Coating | Upon request |
| Application area | Imaging,Lighting,Laser etc |
Shanghai Advance Optical-Electronics Technology Co., Ltd. is a technology-based production enterprise,officially established in September 2009,the plant site located in Qingpu Industrial Park, Shanghai, only half an hour's drive from Shanghai Hongqiao International Airport. The company gathers several excellent technicans in optical industry, has comprehensive supporting capabilities such as optical mechanical and electrical design, processing and sales services, and wholeheartedly provides each customer with high-quality and convenient products and services. Business scope: optical mechanical and electrical module development, precision optical element processing, camera lens design and processing, optical design and optical path optimization solution, technical consultation and after-sales service. Application fields: machine vision, artificial intelligence, biomedical, smart city, high-end monitoring, testing instruments, military equipment, laser etching, special lighting, scientific research institutions, etc.
Company Advantages:
A: We are specialized in optical design.optical element processing,Lenses assembly,Such as Spherical lens,Aspherical
lens,Cylindarlens,Reflector mirror,Filter,Rod lens,Camera lenses etc,and our products are wide used to these filed such as
imaging,Laser,Lighting etc.
Q: What's your advantage?
1. We have about ten thousands optical modules and fixturesin stock,and employ several outstanding technicians and manager.that
will enable to provide customer excellent quality in shortleadtime,also can save the plenty of develop cost for customer.
2. We can help customer to optimize the optical system whichthey dislike,and provide the free optical solution or suggestion.
A: 10pcs.
Q: What's your shipping type?
A: Usually by Fedex,DHL,TNT,EMS etc or Customer appointed.
Q: What's the payment condition?
A: T/T,L/C,VISA,Paypal,Alipay or Negotiation.
Q: What's your quality guarantee period?
A: Three years.
-
