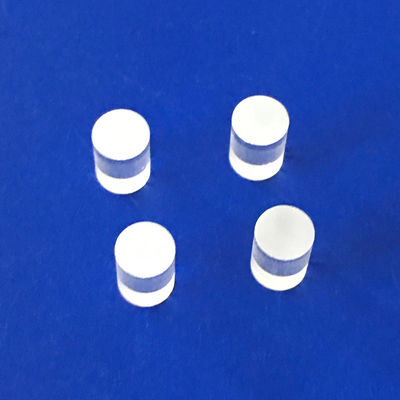

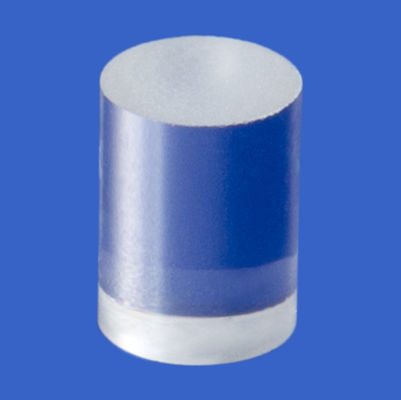

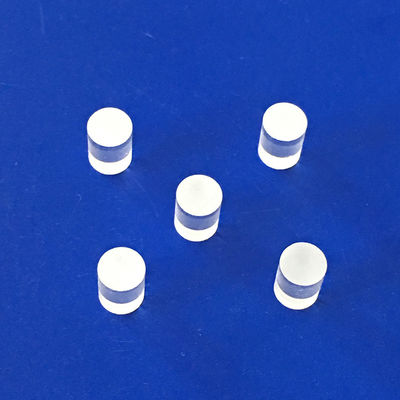

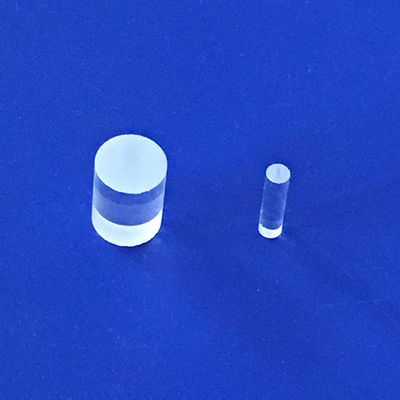

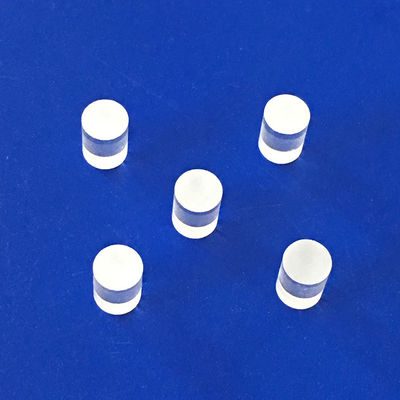

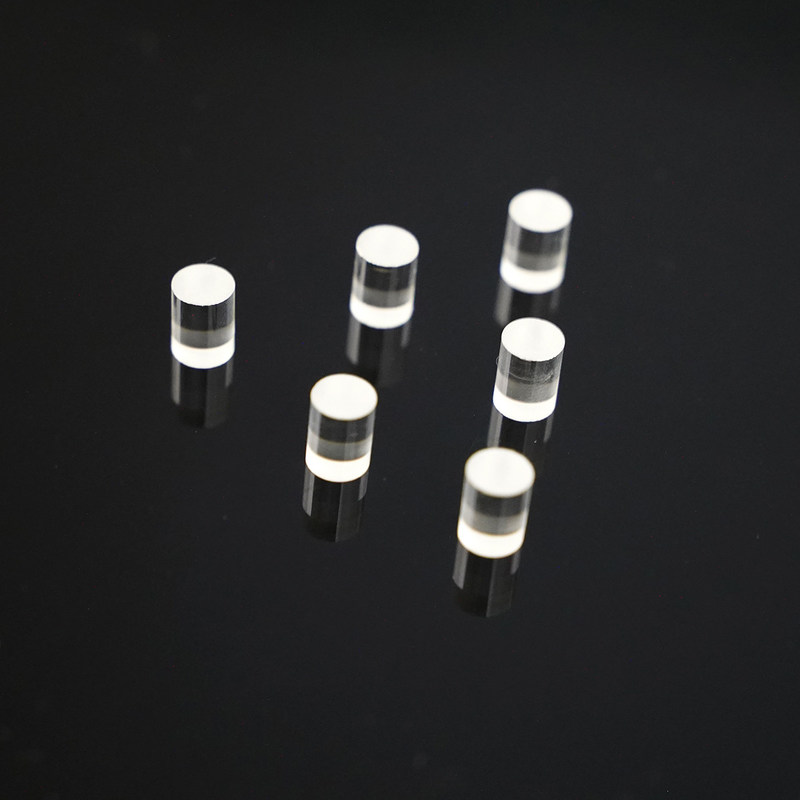

10/5 To 60/40 Sapphire Rod Lens 1mm To 50mm Endoscope

10/5 To 60/40 Sapphire Rod Lens 1mm To 50mm Endoscope
10/5 To 60/40 Sapphire Rod Lens 1mm To 50mm Endoscope 10/5 To 60/40 Sapphire Rod Lens 1mm To 50mm Endoscope 10/5 To 60/40 Sapphire Rod Lens 1mm To 50mm Endoscope 10/5 To 60/40 Sapphire Rod Lens 1mm To 50mm Endoscope 10/5 To 60/40 Sapphire Rod Lens 1mm To 50mm Endoscope 10/5 To 60/40 Sapphire Rod Lens 1mm To 50mm Endoscope

Gambar besar :  10/5 To 60/40 Sapphire Rod Lens 1mm To 50mm Endoscope

Detail produk:
Tempat asal: Tiongkok
Nama merek: Advance
Sertifikasi: ROHS\Reach
Nomor model: Sebagai Persyaratan
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: $0.2~$100
Kemasan rincian: EVA+Vakum
Waktu pengiriman: 3 ~ 30 hari setelah pesanan
Syarat-syarat pembayaran: T/T&L/C
Menyediakan kemampuan: 1000rb/per bulan
Kontak

10/5 To 60/40 Sapphire Rod Lens 1mm To 50mm Endoscope

Deskripsi
Jaminan: - Dukungan khusus: OEM, ODM
Penggunaan: Optik Struktur: Tulang
Membentuk: Tulang Nama Produk: Lensa Batang
Bahan: BK7/Kuarsa/Inframerah/Safir Diameter: 0,5-50mm
Panjang: 0,5-120mm Toleransi Diameter/Panjang: ± 0,005mm
Keakuratan permukaan: N=1-3 Ketidakteraturan: Perubahan N=0,1-0,5
Kualitas Permukaan: 10/5-60/40 Lapisan: Berdasarkan permintaan
Area Aplikasi: Pencitraan, Pencahayaan, Laser, dll Pelabuhan: Shanghai atau Persyaratan
Tipe Antarmuka: Canon EF-S Diameter: 25 mm
Ketebalan tengah: 5 mm Toleransi lebar: +/- 0,01mm
Gaya: antik Area Aplikasi: Pencahayaan, Laser, dll
Membentuk: Bentuk bola Toleransi Panjang Fokus: +/- 1%
Bahan: kaca optik Suhu pengoperasian: -20 sampai 70 °C
Filter Warna Cincin: Hitam, Perak, Emas Pilihan Pelapisan: hijau
Indeks bias: 1.52 Panjang Fokus: 150mm
Menyoroti:

60/40 Rod Lens

,

10/5 Rod Lens

,

60/40 50mm sapphire rod

Custom D1mm~50mm Sapphire JGS1 Quartz Optical Glass Half Cylinder Rod Endoscope Sapphire Rod Lens

Specification

Optical JGS1 fused silica quartz glass rod optics endoscope lens.

Why choose the sapphire?
1-Thinner and Stronger than Standard Glass Windows
2-Transmits Wavelengths Ranging From UV to Mid-Infrared
3-Features Extreme Surface Hardness and Chemical Resistance Sapphire Windows are manufactured from single crystal sapphire, making them ideal for demanding applications (such as laser systems) because of their extreme surface hardness, high thermal conductivity, high dielectric constant and resistance to common chemical acids and alkalis. Sapphire is the second hardest crystal next to diamonds and, because of their structural strength, sapphire windows can be made much thinner than other common dielectric windows with improved transmittance. Chemically, sapphire is single crystal aluminum oxide (Al2O3), and is useful in a transmission range from 0.2 - 5.5µm.

Material

 BK7, Quartz, Infrared, Sapphire
Diameter 0.5-50mm
Length 0.5-120mm
Diameter Tolerance ±0.005mm
Length Tolerance ±0.005mm
Irregularity Change In N=0.1-0.5
Surface quality 10/5-60/40
Coating
Upon request
Application Area Imaging,Lighting,Laser etc


10/5 To 60/40 Sapphire Rod Lens 1mm To 50mm Endoscope 0


10/5 To 60/40 Sapphire Rod Lens 1mm To 50mm Endoscope 1


10/5 To 60/40 Sapphire Rod Lens 1mm To 50mm Endoscope 2

Recommend Products
10/5 To 60/40 Sapphire Rod Lens 1mm To 50mm Endoscope 3
Company Profile
10/5 To 60/40 Sapphire Rod Lens 1mm To 50mm Endoscope 4


Shanghai Advance Optical-Electronics Technology Co., Ltd. is a technology-based production enterprise,officially established in September 2009,the plant site located in Qingpu Industrial Park, Shanghai, only half an hour's drive from Shanghai Hongqiao International Airport. The company gathers several excellent technicans in optical industry, has comprehensive supporting capabilities such as optical mechanical and electrical design, processing and sales services, and wholeheartedly provides each customer with high-quality and convenient products and services. Business scope: optical mechanical and electrical module development, precision optical element processing, camera lens design and processing, optical design and optical path optimization solution, technical consultation and after-sales service. Application fields: machine vision, artificial intelligence, biomedical, smart city, high-end monitoring, testing instruments, military equipment, laser etching, special lighting, scientific research institutions, etc.



Company Advantages:

1. Have comprehensive design, production and sales capabilities, and provide customers with one-stop convenient procurement services; 2. It has tens of thousands of optical molds and samples, which can provide customers with fast proofing services with low cost; 3. Be able to participate in the customer's new product research and development early, provide feasible plans and suggestions, and make the project less detours;
Certifications
10/5 To 60/40 Sapphire Rod Lens 1mm To 50mm Endoscope 5
Exhibition
10/5 To 60/40 Sapphire Rod Lens 1mm To 50mm Endoscope 6
Packing & Delivery
10/5 To 60/40 Sapphire Rod Lens 1mm To 50mm Endoscope 7
10/5 To 60/40 Sapphire Rod Lens 1mm To 50mm Endoscope 8

FAQ
Q: What are your main products or Which fiefd do your products be used?
A: We are specialized in optical design.optical element processing,Lenses assembly,Such as Spherical lens,Aspherical
lens,Cylindarlens,Reflector mirror,Filter,Rod lens,Camera lenses etc,and our products are wide used to these filed such as
imaging,Laser,Lighting etc.

Q: What's your advantage?
1. We have about ten thousands optical modules and fixturesin stock,and employ several outstanding technicians and manager.that
will enable to provide customer excellent quality in shortleadtime,also can save the plenty of develop cost for customer.
2. We can help customer to optimize the optical system whichthey dislike,and provide the free optical solution or suggestion.
Q: What's your MOQ?
A: 10pcs.
Q: What's your leadtime?
A: 1day for inventory and 25~35days for the new project.

Q: What's your shipping type?
A: Usually by Fedex,DHL,TNT,EMS etc or Customer appointed.

Q: What's the payment condition?
A: T/T,L/C,VISA,Paypal,Alipay or Negotiation.

Q: What's your quality guarantee period?
A: Three years.
